Durkeesox integrate and streamline its production procedures in the factory,leaving the installation work that on-site worker can easily manage well.That contributes to easier installation,lower cost and shorter construction time compared with that of traditional air duct.

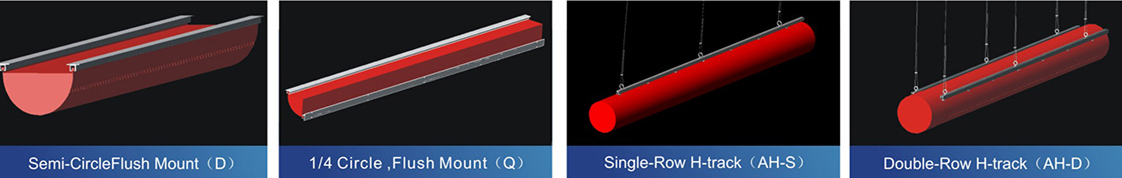

The installation of Durkeesox system is much easier than any conventional air duct system, which consists of 2 styles:

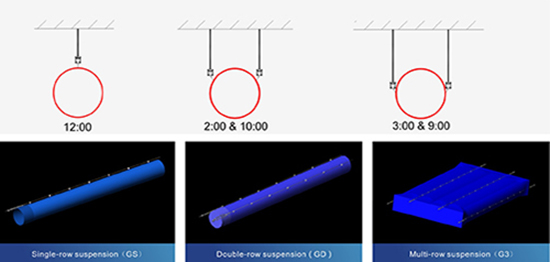

1.Cable suspension system.
2.Aluminum track suspension system

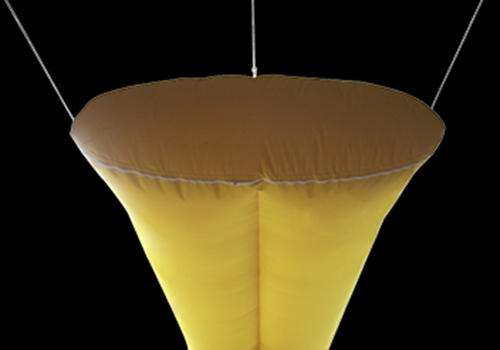

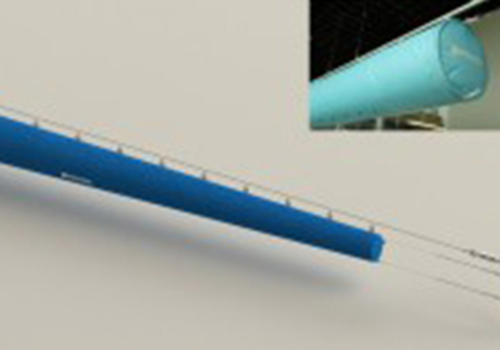

Ellipse duct use multi-row suspension method with DurkeeSox exclusively-owned patented pulling cable technology, effectively reducing the height of duct itself while ensuring visual pleasing.

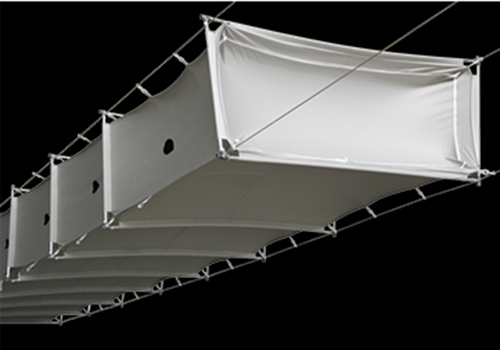

Returnsox®use quadruple cable suspension system and Durkeesox exclusive & patented NIR supporting technology to maintain the flexible air duct in rectangle shape and return air under negative pressure. - hoax ga?

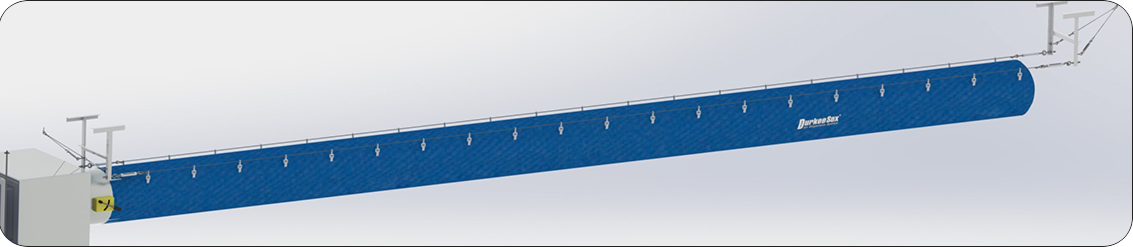

The installation of internal retention ring system utilizes cable suspension system with single row or double row suspension like normal series. Additional tension cables at the end of each straight section ensure fabric between rings is kept round and taut even when deflated.
The materials required to install DurkeeSox system includes: fabric air ducts, special fittings, components and accessories, which are supplied by the manufacturer (shipped with the consignment, including installation manual and assembly drawing, etc.). Other installation accessories required on site such as brackets, fastening bolts and others shall be purchased by the contractor.

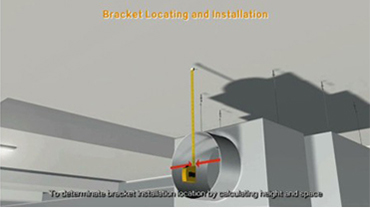

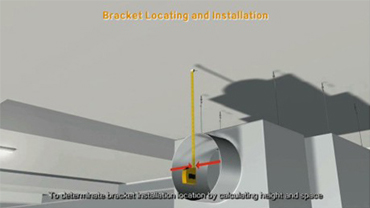

Measure and locate the height of bracket

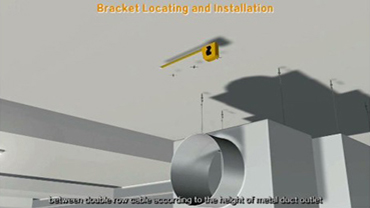

Locate the spacing of bracket
Install the bracket
.jpg)
Cable measurement & cutting and fix the cable onto the bracket

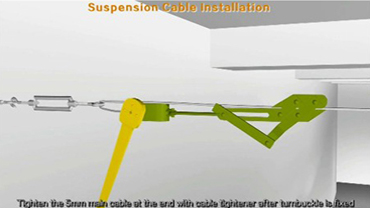

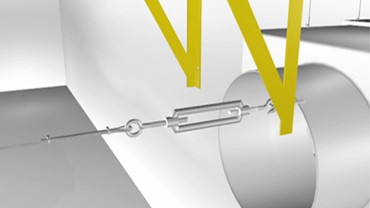

Tighten the cable from both sides

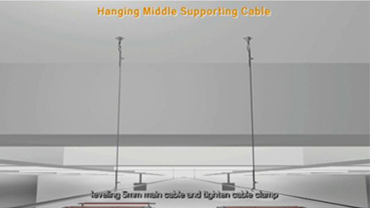

Fix the supporting cables

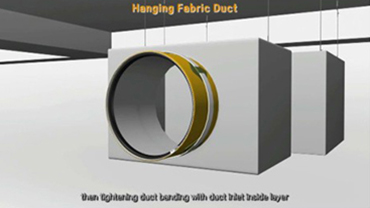

Inlet connection and fastening
Connect the inlet with the first duct segment

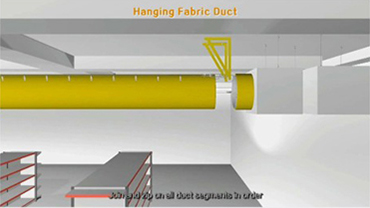

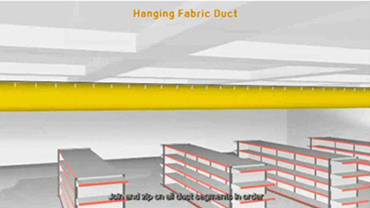

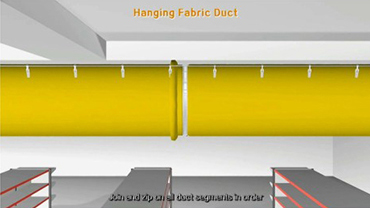

Connect duct segments
Straighten and adjust the duct

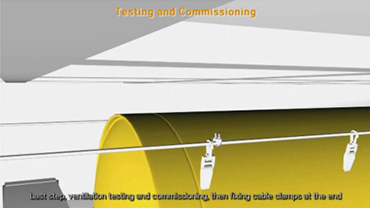

Ventilation for adjustment
Fix the cable end clamp
